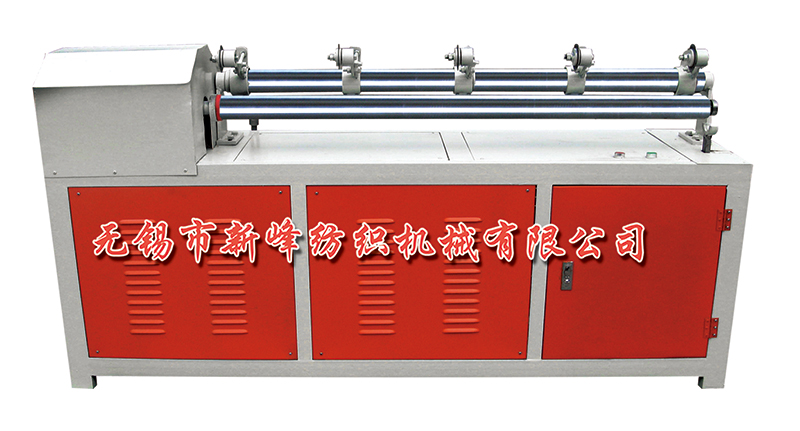

Automatic pneumatic fine cutting machine series
The automatic cutting machine is belong to after deep processing, spiral tube parallel winding, the finely cut into the mechanical side, is to improve the paper tube length size is consistent, incision smooth level off on both ends, and the design and manufacture.
The fine cutting machine adopts steel staicture, driving the motor and reducer, preparation of pneumatic components, using circular blade, cutting knife one-time cut more, this machine can use manual, automatic, CNC,at the same time can be customized design and manufacture.
1,the applicable fine cut inside diameter: Φ30-Φ76 mm
2, suitable precision cut length: 500-1600 mm
3, fine cut size: 100-1600 mm
4, fine cutting thickness: 1-6 mm
5, cutting way: Φ80 round blade
6,production speed: 25 to 30 times/min
|
7,working pressure: 0.6 mpa
8, host power: 2.2 kw
9, the operation staff: 1
10,host, size: 2100X750X900 mm
11,machinery (gross weight): 825 kg
|
|
